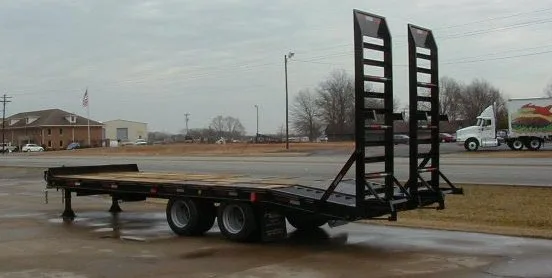

Construction Equipment Tag-a-Long Trailers

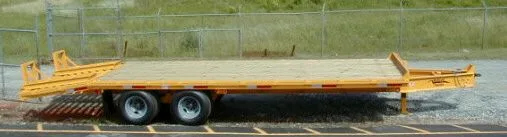

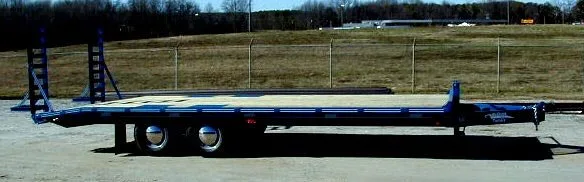

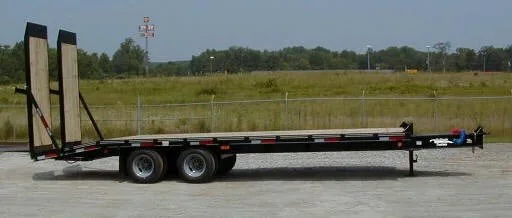

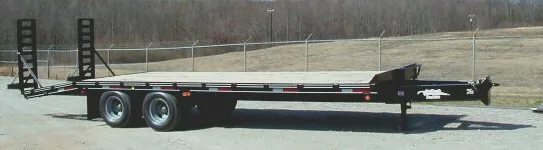

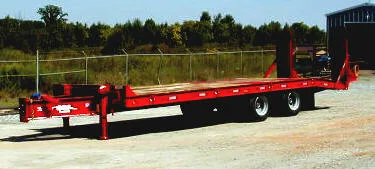

9, 10, & 12 ton models all use the same chassis. Air brakes are available on 10 & 12 ton models. Special Beavertails & Ramps are available for paving equipment. Our 10 ton units come with the Dexter 10k heavy duty axle as standard equipment.

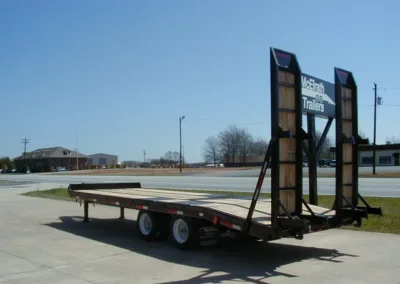

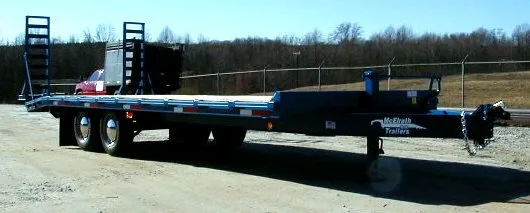

15 ton & 22.5 ton units both use the same chassis. Main frames are constructed with a 14" wide flange beam at 22lbs. per foot. Five inch channel cross members are pierced through the main frames.
825T10T
Trailer Capacity | 10 Tons |
Deck Width | 96" or 102" |
Deck Length | 20' Flat 5' B-Tail (optional lengths available) |
Deck Height | Approx. 36" |
Deck Material | PT Pine or Oak |
Axles | Two Dexter, 10K Heavy Duty |
Brakes | Electric, 12 1/4X4" (options available) |
Hubs | Oil Bath |
Tires | Radial |
Hitch | 3" Pintle Eye Adjustable |

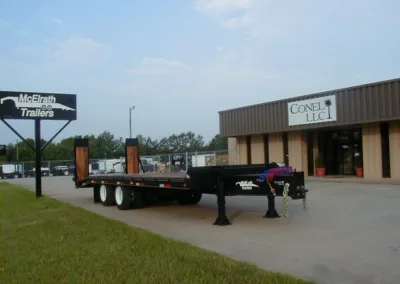

825T22.5T
Trailer Capacity | 22.5 Tons |
Deck Width | 96" or 102" |
Deck Length | 20' Flat 5' B-Tail (optional lengths available) |
Deck Height | Approx. 35" |
Deck Material | Oak |
Axles | Two Dexter, 22.5 |
Brakes | ABS Air |
Hubs | Oil Bath |
Tires | 215 75 R 17.5 |
Hitch | 3" Pintle Eye Adjustable |
825T10T
- Pockets & Rubrails
- 5' Ramps
- Oil Bath Hubs
- Pressure Treated Deck
- W10X19 Main Frame I-Beam
- Mud Flaps
- Break-Away Switch
- Shock proof Lights
- Wire-In Conduit
Standard
825T10T
- Hydraulic Ramps
- Dual Jacks
- 102" Wide
- Oak Deck
- Steel Floors
- Vac/Hydraulic Brakes
- Hutch Suspension (10k up)
- Extra Length
- Spare Tire & Wheel
- Air Brakes( 10 & 12k)
Options
825T22.5T
- Air Brakes
- Spring Brake "Park" (one axle)
- Pockets & Rubrails
- Bud Disc Wheels
- Shock Proof Lights
- Hutch US 9700 Suspension
- Oak Deck
Standard
825T22.5T
- Hydrulic Ramps
- Spare Tire & Wheel
- Dual Jacks
- Extra Length
- Covered Lockable Tool/Chain Box
- D Rings
- Springs Brake Park Both Axles
Options
