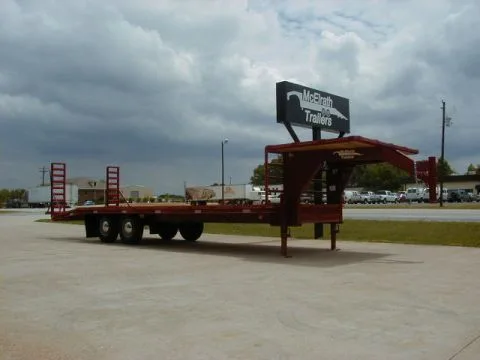

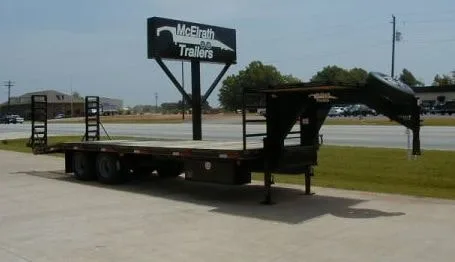

Gooseneck Flatbeds
Gooseneck Flatbeds are available in 6, 7, and 8 ton models which are tandem axle single wheel or 9, 10, and 12 ton models which are tandem axle dual wheel. Various lengths can be ordered up to 45 feet.
Our Flip-up Beavertail has no rival in the trailer industry. It is easy & safe to operate, yet sturdy & reliable.
825GN7T
| Trailer Capacity | 7 Tons |
| Deck Width | 96" (102" optional) |
| Deck Length | Optional Standard 25 Feet |
| Deck Material | Pressure Treated Pine |
| Axles | Two Dexter, 7K Torflex EZ Lub |
| Brakes | Electric, Both Axles |
| Tires | Radial |
| Hitch | 2 5/16 Adj Ball Coupler |
| Toolbox | Inside GN Uprights |
825GN10T
| Trailer Capacity | 10 Tons |
| Deck Width | 96" (102" optional) |
| Deck Length | Optional Standard 25 Feet |
| Deck Material | Pressure Treated Pine |
| Axles | Two Dexter, 10K Heavy Duty, Oil Bath Hub |
| Brakes | Electric, Both Axles |
| Tires | Radial |
| Hitch | 2 5/16 Adj Ball Coupler |
| Toolbox | Inside GN Uprights |
- Spring Assist Ramps
- 12" Wide Flange Beam Frame
- 10 Ply 750X16E Truck Tires
- Mud Flaps ICC Lights
- Electric Brakes
- Pockets & Rubrails
- Pipe Bulkhead
- HD Dropleg Jack
- Break Away Switch
- Bud Disc Wheels on Duals Wire in Conduit
Standard
- Covered Lockable Toolbox
- Flip-Up Beavertail
- Vacuum over Hydraulic Brakes
- Air Brakes (10 ton & up)
- Heavy Duty Deck
- Top Deck
- Extra Landing Gear
- Load Lights
- Spare Tire Wheel & Mount
- Winch Mount
- Radial Tires
- Ratchet Straps
Options
