Tilt Top

Tilt Top Trailers

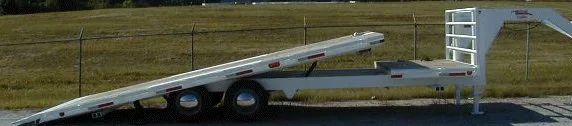

Now Tilt Deck trailers are available in 7 & 8 ton models. Please call for specs.

Tilt trailers are available in 9, 10, & 12 ton models and are all Tandem Axle, dual wheel. All models feature 4X8X1/4 wall tube longsills eliminating the twist commonly found in tilt beds. We also offer a 15 ton and 22.5 ton tilt trailers.

825GN10TT
Trailer Capacity 10 Tons
Deck Width 96" or 102"
Deck Length 5' Stationary 20' Tilt
Deck Height Approx. 36"
Deck Material PT Pine
Axles Two Dexter, 10K Heavy Duty
Brakes Electric, 12 1/4X4"
Hubs Oil Bath
Tires Radial
Tilt Deck 8X4X1/4 Wall Tube with 4" Channel Pierced
Main Frame 12" Wide Flange Beam Tapered at Axles
825T15TT
Trailer Capacity 15 Tons
Deck Width 96" or 102"
Deck Length 5' Stationary 20' Tilt
Deck Height Approx. 36"
Deck Material Oak
Axles Two Dexter, 15k
Brakes ABS Air (electric available)
Tires Radials
Tilt Deck 8X4X1/4 Wall Tube with 4" Channel Pierced
Main Frame 12" Wide Flange Beam Tapered at Axles

825GN10TT

  • Pockets & Rubrails
  • Oil Bath Hubs
  • Pressure Treated Deck
  • Mud Flaps
  • Shock Proof Lighting
  • Break-Away Switch

Standard

825GN10TT

  • Dual Jacks
  • 102" Wide
  • Oak Deck
  • Steel Floors
  • Vac/Hydraulic Brakes
  • Hutch Suspension (10k up)
  • Extra Length
  • Spare Tire & Wheel
  • Air Brakes
Options

825T15TT

  • ABS Air Brakes
  • Pockets & Rubrails
  • Mud Flaps
  • Hutch 9700 Suspension
  • Spring Brake "Park" (one axle)

Standard

825T15TT

  • Electric Brakes (15 ton only)
  • 102" Wide
  • Dual Jacks with Gearbox
  • Extra Length
  • Spare Tire & Wheel
  • D Rings
  • Springs Brake Park Both Axles
Options

Just give us a call and find out more!
